Core Drilling Rig Machine 100m 200m Hydraulic Exploration Drilling Equipment Mining Core Drilling Rig

Product Categories

Crawler Water Well Drilling Rig [137]
Truck Mounted Water Well Drilling Rig [51]
Trailer Mounted Water Well Drilling Rig [87]
Jumbo Drilling Rig [52]
DTH Drilling Machine [43]
Integrated Drilling Equipment [78]
Top Hammer DTH Drilling Rig [27]
Bucket Drilling Rig [40]
Core Drilling Rig [201]
DTH Drilling Tools [35]
Hydraulic Jack Hammer [66]
Screw Air Compressor [136]
Piston Air Compressor [30]
Drill Rods [50]
Pile Driver Machine [60]
Rotary Drilling Rig [41]
PDC Tricone Bits [79]

Quzhou Sanrock Heavy Industry Machinery Co., Ltd.

Trust Seal

Verified Supplier

Credit Check

Supplier Assessment

Contact Now

Core Drilling Rig Machine 100m 200m Hydraulic Exploration Drilling Equipment Mining Core Drilling Rig

Name: Core Drilling Rig Machine 100m 200m Hydraulic Exploration Drilling Equipment Mining Core Drilling Rig
Brand: SANROCK
Price: 1 USD

Best Core Drilling Rig Machine 100m 200m Hydraulic Exploration Drilling Equipment Mining Core Drilling Rig wholesale

Brand Name : SANROCK

Model Number : SRC200

Certification : CE ISO 9001:2015

Place of Origin : Zhejiang, China

MOQ : 1Set/Sets per Month

Price : negotiable

Payment Terms : L/C,D/A,D/P,T/T,Western Union,MoneyGram

Supply Ability : 5000Set/Sets per Month

Delivery Time : 15-25days

Packaging Details : Nude package for machines, Wooden box package for spare parts, Or customer demand.

Product name : hydraulic core drilling rig

Name : borehole drilling rig,core drilling rig

Type : Core Drilling Rig

Usage : water well.core sample

Feature : High Drilling Efficiency,portable，Light Weight

Application : Geological Exploration

Power : 16.2KW

Rated speed : 2200r/min

Drilling Diameter : 75-325mm

Drilling Depth : 200m

Drill rod diameter : 42-60mm

Dimension(l*w*h) : 2700*900*1500mm

After-sales service provided : Online support

Maximum lifting weight of vertical shaft : 25KN

Maximum feed pressure of vertical shaft : 15KN

Maximum output torque of vertical shaft : 15KN

Vertical shaft speed(4th gear) : 71,142,310,620 r/min

Vertical shaft travel : 450mm

Hole dip Angle : 90-75°

Final hole diameter : 75mm

Single package size : 2150×880×1560 mm

Single gross weight : 760 kg

Contact Now

Core Drilling Rig Machine 100m 200m Hydraulic Exploration Drilling Equipment Mining Core Drilling Rig

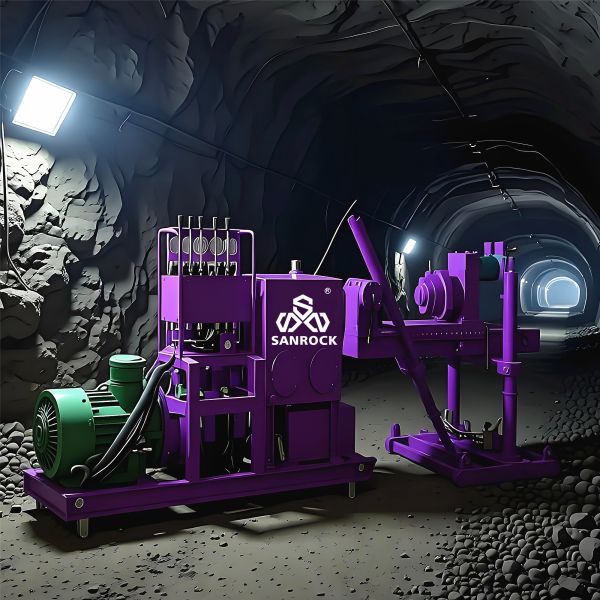

Mining Exploration Geological Core Drilling Rig – 200m Depth
This heavy-duty core drilling rig is purpose-built for underground and open-pit mining exploration, geological surveying, and mineral resource evaluation, with a maximum drilling depth of 200 meters.

Engineered to withstand the harsh conditions of mine sites, the rig features a reinforced steel frame, dust- and moisture-resistant components, and a robust hydraulic system that ensures reliable operation in confined or rugged environments.
Equipped with a high-torque rotary head and precise feed control, it supports diamond core drilling (NQ, HQ, BQ) and delivers high-quality, undisturbed core samples for accurate geological analysis.

The compact modular design allows for easy transport through mine tunnels and quick setup at drilling locations. Safety features such as overload protection and emergency shut-off are integrated for operator protection.
Ideal for mineral prospecting, grade control, and geotechnical investigation in mining operations, this rig combines field-proven durability, efficient coring performance, and a 200-meter depth capability tailored to the demands of the mining industry.

Core Drilling Rig Machine 100m 200m Hydraulic Exploration Drilling Equipment Mining Core Drilling Rig

Products Description

Brand Name:SANROCK

Product name :Core Drilling Rig

Name: Core Drilling Machine

Power Type :Diesel

Feature :High Drilling Efficiency,portable,Light Weight

Packaging Details:packing according to customer's requirement.

Model number:Diesel engine
Rated speed:2200r/min
Power:16.2KW
Borehole depth:200M
Pipe diameter:50mm
Opening diameter:75-325mm
Final hole diameter:75mm
Hole dip Angle:90-75°
Gyrator
Vertical shaft speed(4th gear):71,142,310,620 r/min
Vertical shaft travel:450mm
Maximum output torque of vertical shaft:15KN
Maximum feed pressure of vertical shaft:15KN
Maximum lifting weight of vertical shaft:25KN
Single package size:2150×880×1560 mm
Single gross weight:760 kg

Core Drilling Rig Machine 100m 200m Hydraulic Exploration Drilling Equipment Mining Core Drilling Rig
